HRHC28-20AR
HRHC28-20AR

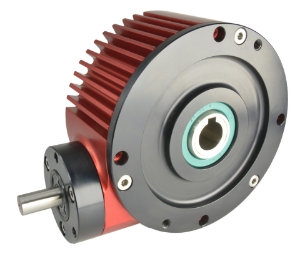

Precision high ratio hypoid gearbox, <4' backlash, shaft input, 12mm output bore & 10mm input shaft, 20Nm output torque, 28mm offset centres, ratio 15:1
Product specifications
Centre Dist. [a]
28.00
Gear Ratio [i=]
20:1
Output Torque T₂max [Nm]
40
Output Torque T₂n [Nm]
20.00
Output Backlash j
≤0.06°
Efficiency n1 1000 r/min [ηz]
90%
Mass [kg]
1.32
Max. Input Radial Load Fr1 N
200
Max. Input Axial Load Fa1 N
100
Max. Output Radial Load Fr2 N
600
Max. Output Axial Load Fa2 N
400
Lubrication Oil
Klubersynth GH 6-220
Specifications
Product PDF
Technical
Overview
Product specifications
Centre Dist. [a]
28.00
Gear Ratio [i=]
20:1
Output Torque T₂max [Nm]
40
Output Torque T₂n [Nm]
20.00
Output Backlash j
≤0.06°
Efficiency n1 1000 r/min [ηz]
90%
Mass [kg]
1.32
Max. Input Radial Load Fr1 N
200
Max. Input Axial Load Fa1 N
100
Max. Output Radial Load Fr2 N
600
Max. Output Axial Load Fa2 N
400
Lubrication Oil
Klubersynth GH 6-220
