PF40DU-10

Ondrives Precision Gears and Gearboxes Part number PF40DU-10

PF40DU-10

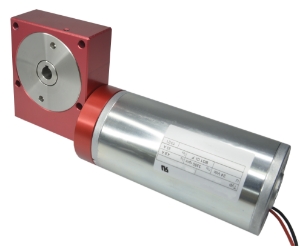

PF40 precision worm gear reducer fitted with 24v DC motor, ≤30' backlash, 2.7Nm, ratio 10:1
Ondrives Precision Gears and Gearboxes Part number PF40DU-10 Ondrives Precision Gears and Gearboxes Part number PF40DU-10 Ondrives Precision Gears and Gearboxes Part number PF40DU-10

Product specifications

Centre Dist. [a]37.50
Gear Ratio [i=]10:1
Output Backlash j≤0.5°
Nm Output at 1550 Rpm Input2.7
Efficiency n1 1000 r/min [ηz]89%
Nominal Output Rpm167
Rpm at 12V DC1675
DC MotorDUN63x55-24
Mass [kg]1.7
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1

Product specifications

Centre Dist. [a]37.50
Gear Ratio [i=]10:1
Output Backlash j≤0.5°
Nm Output at 1550 Rpm Input2.7
Efficiency n1 1000 r/min [ηz]89%
Nominal Output Rpm167
Rpm at 12V DC1675
DC MotorDUN63x55-24
Mass [kg]1.7
Working Temp Range-20°C ~ +85°C
Max. Housing Temperature (°C)85
Starting Voltage (V)1
