PHG2.5-15L

Ondrives Precision Gears and Gearboxes Part number PHG2.5-15L

PHG2.5-15L

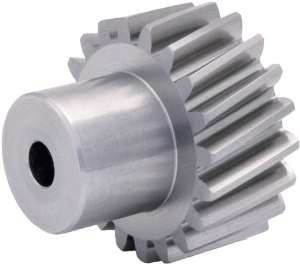

2.5 Module Steel 817M40T (28HRC) 15 deg. Left Hand Helix Precision Parallel Helical Gear 20° PA - Quality Grade 7e25 DIN 3961/3967 (ISO 1328)
Ondrives Precision Gears and Gearboxes Part number PHG2.5-15L Ondrives Precision Gears and Gearboxes Part number PHG2.5-15L

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionLeft Hand
Normal Module mn2.5
Pressure Angle20°
No. of Teeth [z]15
Torque T₂ [Nm] n1 100 r/min18.16
Ref. Diameter [d]38.82
Bore Diameter [di] H712
Tip Diameter [da]43.82
Hub Diameter [BD]30
Backlash (mm) jt.i (min)0.053
Backlash (mm) jt.e (max)0.134
Inertia [I] kgm²6.12 x 10-5
Mass [kg]0.324

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Quality DIN 3961 DIN39677e25
Gear Tooth TypeHelical
Helix DirectionLeft Hand
Normal Module mn2.5
Pressure Angle20°
No. of Teeth [z]15
Torque T₂ [Nm] n1 100 r/min18.16
Ref. Diameter [d]38.82
Bore Diameter [di] H712
Tip Diameter [da]43.82
Hub Diameter [BD]30
Backlash (mm) jt.i (min)0.053
Backlash (mm) jt.e (max)0.134
Inertia [I] kgm²6.12 x 10-5
Mass [kg]0.324
